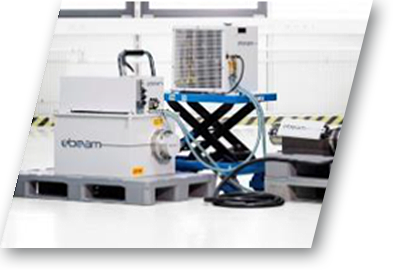

Ebeam Engines

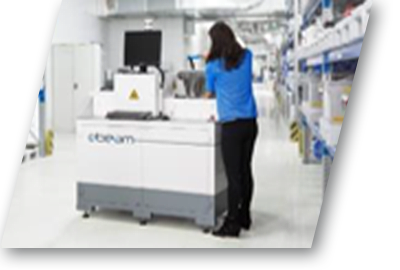

EBLab

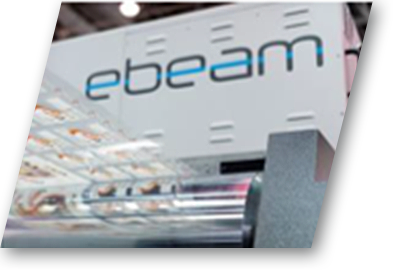

Ebeam Systems

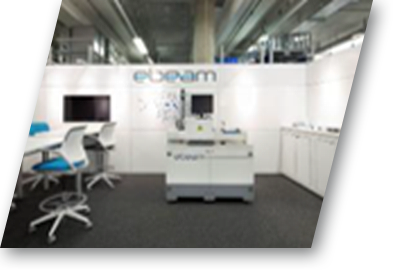

Access ebeam
| Features | |
|---|---|
| High voltage range | 80-200 keV,precision> 99 % |
| Max. power ebeam lamp | 3kW |
| Max. beam current (high voltage dependent) | 22 mA, precision > 99% |
| Sample transport speed | 3-30 m/min |
| Sample size | DIN A4 (216x297 mm), height-adjustable up to 50 mm (in steps of 5 mm) |
| Air gap | 5-55 mm (considering a sample of height zero) |
| Oxygen measurement device | included |
| Operating modes | with and without inerting gas (optional) |
| Nitrogen inerting | residual oxygen concentration limit below 200 ppm |
| ebeam lamp | EBA-200/270-OA |
| Options | ozone extraction kit active carbon ozonefilter closed loop water cooler low Ne volume cassette |
| Environmental conditions | |
|---|---|
| Ambient temp. range | 10 to 35°C |
| Relative humidity | 10 to 70 % |
| Physical data | |
|---|---|
| Weight | 1450 kg (gross) / 1300kg (net) |
| Min. floor loading | 1000 kg/m² |
| Size (width, depth, height) | 1700, 980, 1470 mm |
| Radiation safety | |
|---|---|
| Fully shielded system | Lead-lined painted steel cabinet |
| Max. leakage radiation | < 1pSv/h at 10 cm from surface |
| Electrical data | |
|---|---|
| Input supply voltage | PNE 230V AC (single phase) |
| Power consumption | max. 6 kVA |
| Recommendation external circuit breaker | 30 A |
| Supply lines | |
|---|---|
| Cooling water min. flow rate | > 3 I/min |
| Temperature | 25°C to 35°C always >3°C above ambient temperature |
| N_flow rate | 200 I/min Peak |
| N2 pressure | min. 4 bar (at 200 I/min), max. 6 bar |
