| Control System Meets European Standards |
| The control system consists of top quality electronic components which comply with European safety requirements.
The interior of the control cabinet is dust-proof and fluid-proof.
The control system has a self-diagnostic function and warning light for clear identification. |
|
|
|
| |
|
| |
 |
| Work Spindle head |
The work spindle head swivels +3degree~-5degree.
The spindle head is equipped with a 8" 3-jaw chuck for chucking workpiece. |
|
|
| |
 |
| Advanced CNC Control |
The machine is equipped with the latest CNC control with teach-in programming and is easy to operate.
Machining programs are automatically generated through graphic dialog. This greatly saves on preparation time while increasing efficiency. |
|
|
|
| |
|
| |
| Standard Accessories |
 |
 |
 |
| Angle Adjustment bevice |
Tool Box with Tools |
Coolant Unit |
| |
|
|
 |
|
|
Oil Tank
The oil tank is equipped with double pumps, providing power for the hydraulic chuck and lubrication for sideways of work spindle head. |
|
|
|
| |
|
|
|
|
| Optional Accessories |
 |
 |
|
| End Face Touch Probe (Optional)
The touch probe is used for fast and convenient measurement for reference point of end face. |
|
| Hydraulic Chuck and Rotary Cylinder |
|
|
|
| |
|
| |
| SPECIFICATIONS |

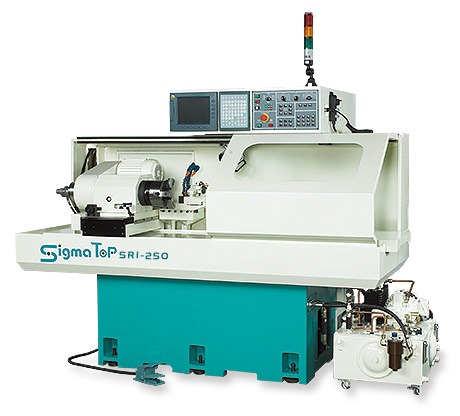

SRI-250 |
Capacity |
| Inside diameter range |
Ø6∼Ø250 mm
|
Max. grinding depth
|
150mm
|
Max. chucking length
|
200mm
|
Swing over bed
|
520mm
|
| Swing over fluid guard |
320mm |
Wheel head |
| Max. feed rate |
8m/min
|
Max. travel
|
100mm
|
| Min. setting unit |
0.001mm |
Work spindle head |
Spindle speed
|
13-800 R.P.M. |
Spindle
|
A2-5 |
| Swivel angle |
+3°¡ã-5° |
Motor |
Wheel spindle
|
2 kw |
Workhead spindle
|
2HP4HP + freq. inverter |
X-axis servomotor
|
750W AC |
Y-axis servomotor
|
750W AC |
Coolant pump
|
1/4HP |
| Hydraulic pump |
2HP4P |
| Machine dimensions |
2300 x 1020 x 1800 |
Net weight
|
3400 kg |
| Gross weight |
3700 kg |
|
| |
|
| |
| Standard Accessories |
CNC control ×1 set
Magnetic filter ×1 set
Wave filter ×1 set
Heat exchanger ×1 set
Coolant tank (120L) 1 set, 1/4 pump x 1 pcs
Lubrication system ×1 set
Quartz work light ×1 set
Diamond dresser ×1 set
Leveling bolts and pads ×1 set
Tool box ×1 set
Grinding wheel spindle (made in Taiwan) (choice of speed 10,000-50,000 RPM) x 1 set
Splash guard system x 1 set
Automatic belt tension adjustment device x 1 set
Hydraulic 3-jaw chuck 8" x 1 set |
|
| |
| Optional Accessories |
High Speed grinding wheel
High speed profiled grinding wheel
Water-cooled cooler
Magnetic filter with paper
Rotary type dresser
IMT high speed spindle
3-jaw chuck
Spared grinding wheel spindle (belt type)
Oil mist lubricator for wheel spindle
Built-in type spindle (Made in Taiwan)
Renishaw end face touch plate
Auto door ×1 set |
|
| |
|
