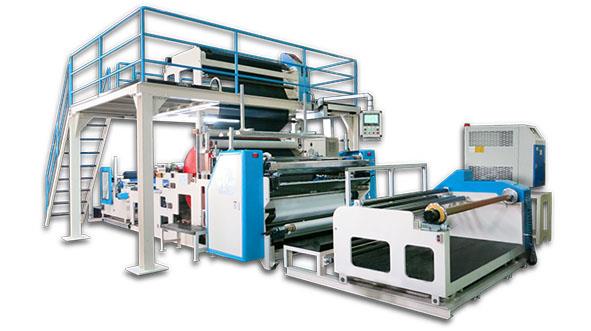

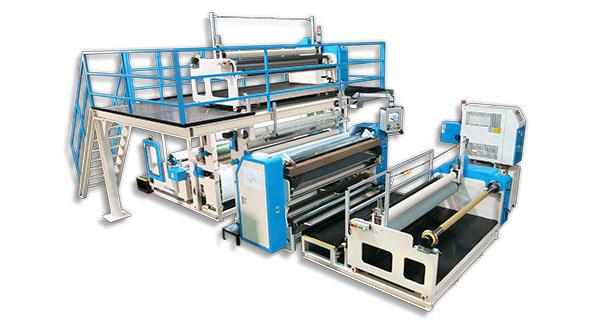

PUR Laminating Machine Collection with CE Certificate Non-toxic｜Breathability｜Environment Friendly 2 in 1 Laminating or 3 in 1 Laminating 【Machine Specification】

Dimension：(Approx) L9500W4850H3600 mm

Standard Working Width：1778/ 1905/ 2200/ 2500 mm

Speed：0-40 m/min

Voltage：According to customer’s demands.

【Application Materials】

Optical film/ TPU/ PP/ PTFE/ EVA/ Non-woven fabric/ Nylon/ Foam/ Polyester/ Elastic fabric/ All kinds of film/ Polyamide/ Special material etc.

【Application Products】

Medical-operating gown, protective clothing, disposable medical supplies/ Textile/ Functional materials/ Outdoors/ Bedding/ Military supplies/ Car interior/ Filter etc.

【Advantages】

Eco-friendly with non-solvent laminating process.

High quality steel blade holder made in Germany.

Precise control gluing thickness and pressing pressure with servo controller.

Equipped with edge position control system and tension control system.

Two types rewinding system (Center Rewinding/ Surface Rewinding).

Various pattern selection for gravure roller. Servo control orientation and PLC touch-screen with 200 operation dat In the past, for laminating 3-in-1 fabric by using PUR glue, factories had to process two times on 2-in-1 laminating machine and wait for 2 days for curing, which was not only time consuming but also required more man power for production. Understanding this issue, Yessing Machinery developed, 3-in-1 PUR experimental machine and production machine, which can be used to optimize the lamination parameters, and reduce the manpower by 10 workers and increase the production capacity by 80%
