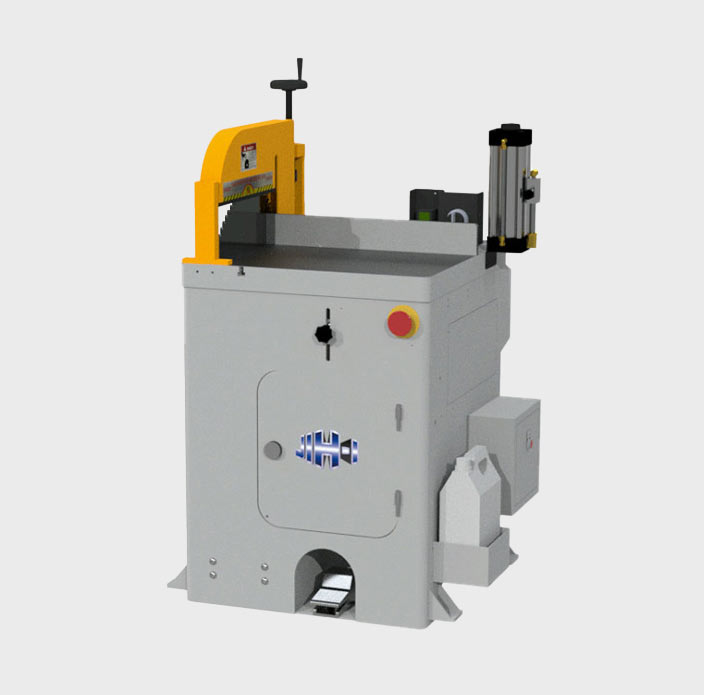

JIH-18 A Type Sawing Machine

Product Description

Feature

Simply treadle the foot switch, and the machine will perform automatic workpiece clamping,automatic oil spray, and automatic cutting,safely and without effort.

Concealed saw blade performs cutting from bottom to top.It allows for the cutting of a Single workpiece or multiple workpieces simultaneously.

Automatic oil mist spray during cutting provides cooling and lubrication effect.

Cutting feed is driven by a hydraulic-pneumatic cylinder for extremely stable cutting speed.

The machine cabinet painting is baked by high temperature of 200 degree (Powder coating) for resisting bumping without paint peeling off.

The machine can conduct 90° cut-off or 45° cutting with the use of a fixture (Optional)



The operator may adjust clamping height and speed and cutting height and speed according to work piece size and thickness for saving wait time.
Adjustable clamping height.
Adjustable cutting speed.
Adjustable cutting speed.
The convenient door for saw blade replacing. Open the side door to replace the blade. The door can load the whole blade and there won't be any inconvenience for the blade installation as those A typed machine.
Chip Outlet Port
The chips are exhausted through this outlet port. It eliminates inconvenient cleaning for those chip deposited in the machine.
Vacuum Oil Mist Unit
The vacuum oil mist unit employs vacuum generation principle to transform cutting fluid into oil mist for splashing. It provides lubrication and cooling functions, ensuring no dust deposit and saw blade, high cutting accuracy and long service life of saw blade.
The saw blade spindle is heat treated and plated for greatly increasing the spindle life.
